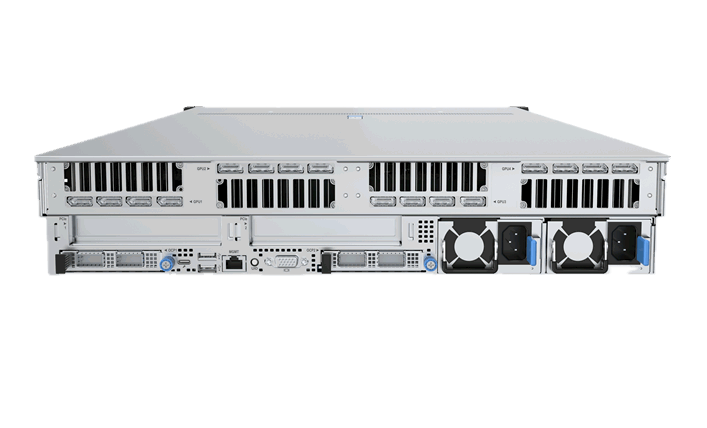

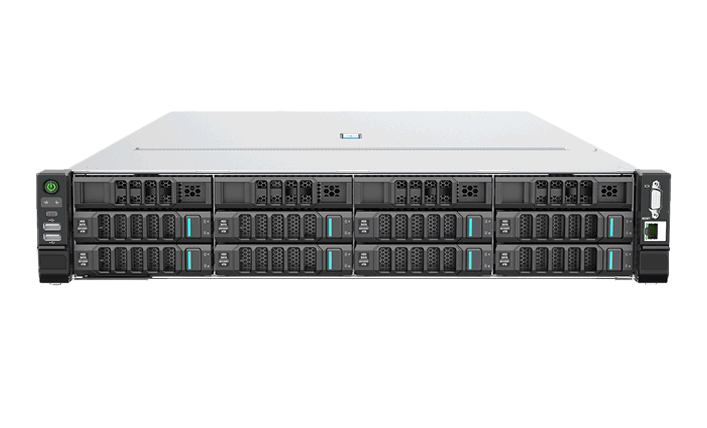

CH- G7260 X5 Server
The G7260 X5 server, which supports two cpus, delivers up to a 52% improvement in processor floating-point performance and a 42% increase in the number of cores, coupled with 8-channel 3200MT/s DDR4 memory technology, providing users with up to a 60% increase in bandwidth. With the modular design of GPU Riser and structural components, it perfectly ADAPTS to dual-width GPU cards of various forms. 96% power efficiency, as well as a standard operating temperature design of 5 ° C to 40 ° C, provides users with higher energy efficiency returns.
Product
consult
-
Integration of open ecology, facing the future of intelligent dataOpen Ecological Design based on OCSP specification
Server Management based on Open BMC -
New system design to meet the needs of GPU expansionUp to 4 dual-width Gpus
Power consumption of a single GPU up to 450W
Rear 4GPU module is assembled with two parts to simplify operation and maintenance -
Flexible and flexible configuration to meet expansion requirementsUp to 32 memory slots
Up to 29 hard disk slots
Up to 9 PCIe slots
- Application scenario
.jpg)
- Data Center
- Virtualization
Cloud computing
.jpg)
- High Performance Computing
- Data analysis
Scientific research
.jpg)
- Confined Space
- Virtualization
Private cloud
.jpg)
- Low Latency
- Financial applications
Trading systems
- Technical specification
| Name | Specifications |
| Processor | Supports up to 2 cpus, each with up to 40 cores, maximum power 270W |
| Chipset | C621A |
| Memory | Support up to 32 DDR4 memory slots, maximum speed 3200MT/s, support RDIMM or LRDIMM |
| GPU support | Support up to 4 double-width GPU cards, single card power consumption up to 450W |
| Storage controller | Optional high-performance RAID controller, supporting RAID0/1/10/5/6/50/60 |
| Storage extension | Supports up to 25 hard drives Supports up to 12 3.5-inch hard drives Supports up to 25 2.5-inch hard drives Supports up to 2 NVMe U.2 hard drives Optional SATA/NVMe* M.2 options |
| PCIe expansion | Up to 8 PCIe expansion slots Up to 6 PCIe standard slots Up to 2 OCP 3.0 slots |
| Management Software | Integrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions |
| Network | Onboard 1 Gbps dedicated management network port; Supports two OCP3.0 network cards; Optional Network adapters based on standard PCIe slots |
| I/O interface | One RJ45 management network port as standard, one rear VGA port, four USB ports (2 front, 2 rear) The Optional expansion card supports two rear USB ports, one USB Type-C management port, and one RJ45 management network port Left mounting ear: Two USB 2.0 ports, optional two USB 3.0 ports Right mounting ear: Optional smart mounting ear supports one VGA, one management network port, or one Type-C management port |
| Security | Support chassis intrusion detection; Support PFR3.0 and SGX2.0 security technology; Support TCM/TPM security module |
| Power supply | Optional 2000W/2600W/2700W/3200W CRPS standard power supply, support 1+1 redundancy |
| Operating temperature | 5 ° C ~ 40 ° C (The operating temperature is affected by different configurations, please refer to the product technical documentation for details) |
| Appearance/Chassis size | 2 u standard case 87 mm (high) (wide) * 447.4 mm * 799 mm (deep) (excluding security panel) |
